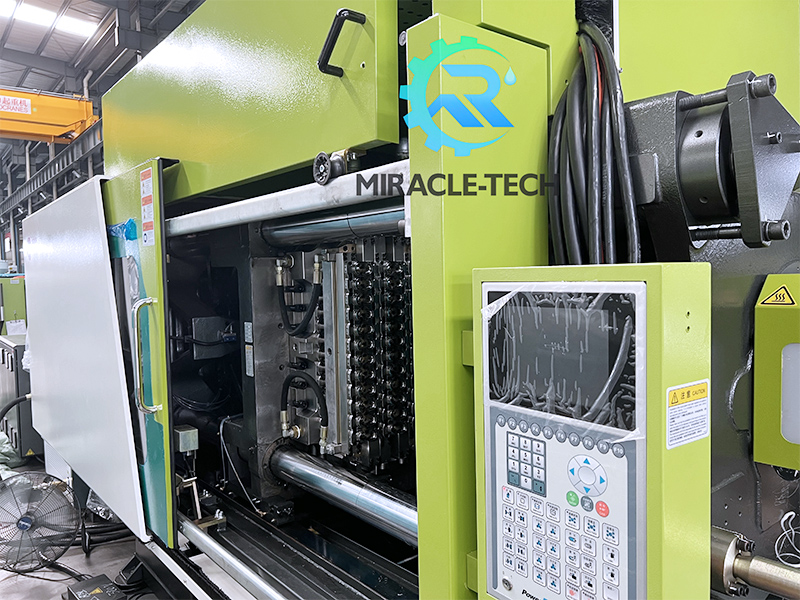

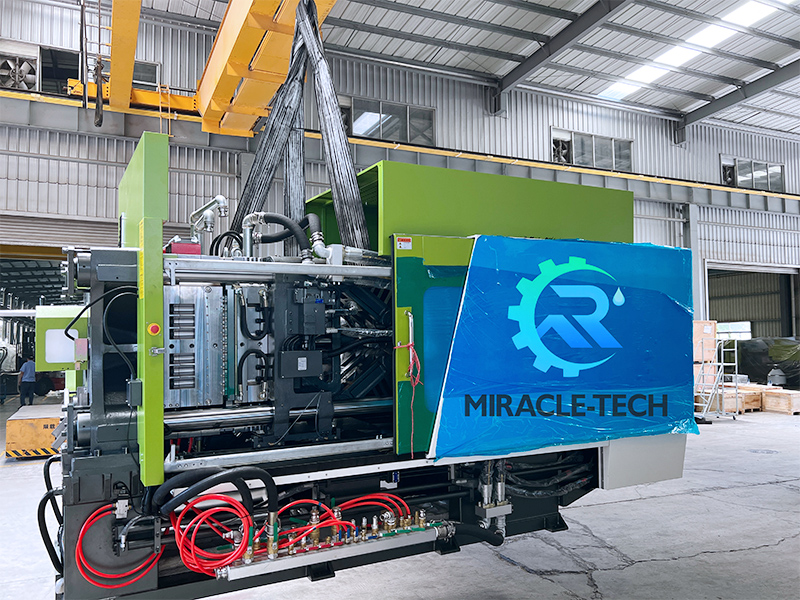

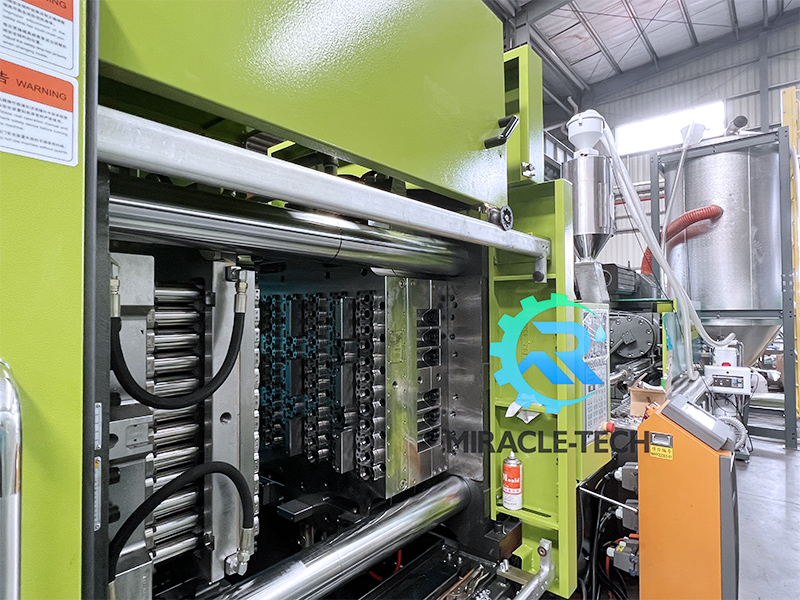

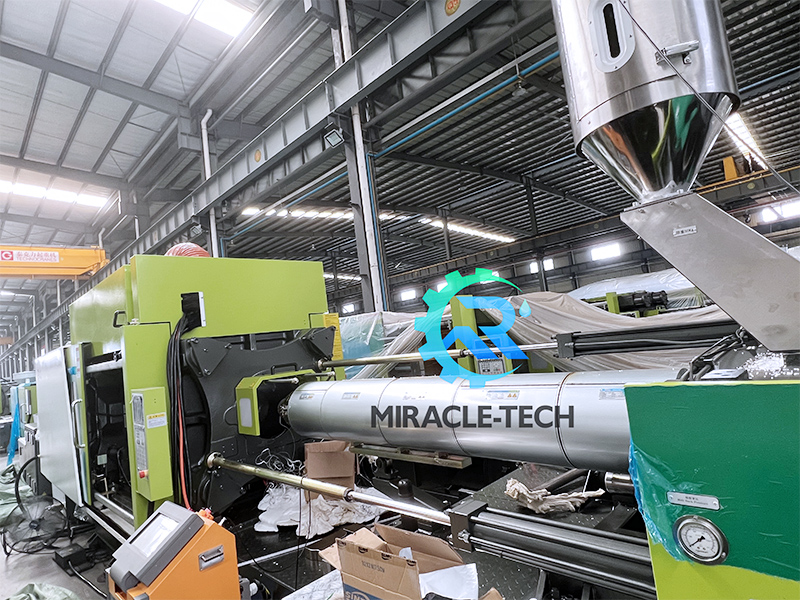

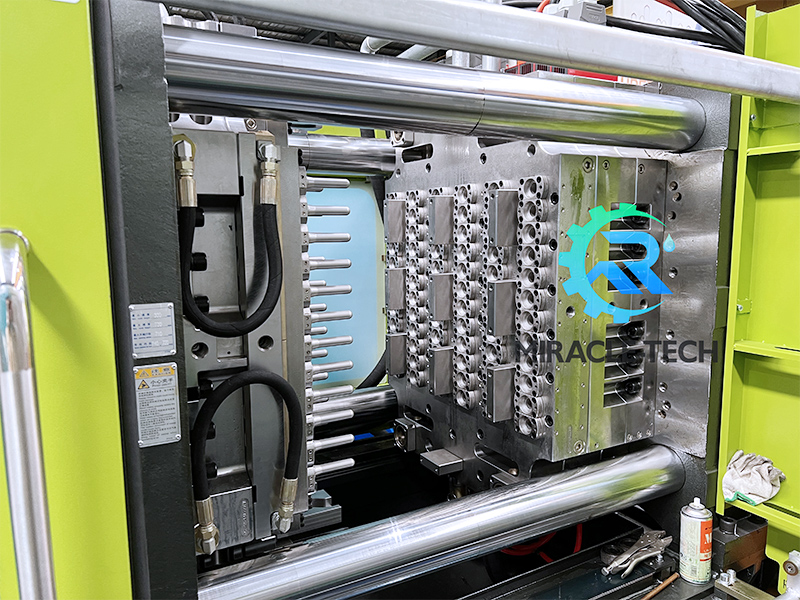

MiracleTech Injection moulding machine
1.Large space for drawbar, high injection weight
2.The most famous parts
3.Perfect after-sales service
Features
- Various texts can be switched.
- Manual, semi-automatic and fully automatic modes.
- Automatic motion monitoring with alarm and fault diagnosis.
- Slope setting function can set the start and stop of the movement to ensure smooth movement
Control System
Full digital control system adopts specialised controller, multi-CPU processing partition,
Multi-functional automatic fault detection, alarm system, 99-mode processing programme, and equipped with remote control interface.
The system has high stability and high efficiency, and is equipped with remote control interface. The system has high stability and fast response speed. The system adopts colour LCD display, easy operation of man-machine interface, and is equipped with multiple peripheral interfaces.
Hydraulic system
Advanced hydraulic system design, through the proportional control of pressure and flow to achieve rapid multi-stage pressure and speed switching, the system configuration is reasonable, stable and reliable, speed switching, the system configuration is reasonable, stable and reliable. Noise is less than 75 dB.
Medium and large-sized equipment adopts bidirectional cartridge valve system, which improves the flow and response speed of the system, and makes the whole machine reach a high performance index.
Servo system
After receiving the pressure and flow command from the computer controller, the servo drive will compare it with the actual pressure and flow feedback and rectify it.
After receiving the pressure and flow commands from the computer controller, the servo drive compares them with the actual pressure and flow feedback and corrects the difference by controlling the speed of the servo motor.
In this way, the control of injection moulding is not only accurate but also fast, and the repeatability of the product is high.
